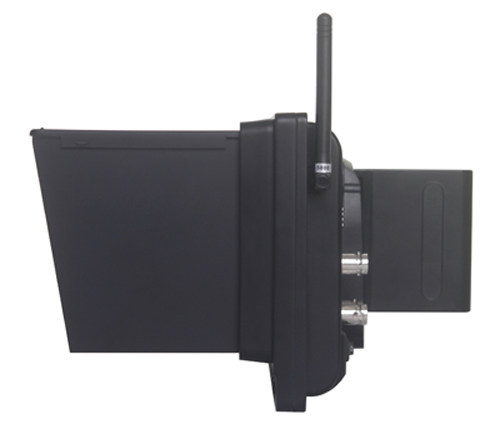

7 Inch HD FPV Monitor built in Wireless 5.8GHz AV Receiver and DVR
Classification: 7 Inch Published: 2013-08-21 18:22:44
  • Price : Negotiable
  • Order



7 Inch  HD FPV Monitor built in Wireless 5.8GHz AV Receiver and DVR ,No Blue Screen



Applications:



  1. Wireless Baby monitor
  2. Wireless video leisure goods
  3. DVD/DVB AV wireless transfer
  4. Engineering construction monitor
  5. Wireless camera security system
  6. Wireless video medical apparatus
  7. Wireless visual reversing camera transmission



Advanced Features :



Character  Photography Functions
RCA Connector(BNC Optional)
Peaking Focus Assist
Portable DVR  Camera 5D II Mode
Plastic Sun Shade  Check Field
TF Card support  max up to 32G
Screen Marker
No Blue Screen  Centre Marker
8 Channels Receiver 4:3 &16:9 image adjustable
Motion Detection  Full Screen Display in mode of Monitoring & Recording
Cycle Recording
High Sensitivity:-90dBM

Frequency Control



Specifications :


Description  7" Wireless Built-in Receiver 5.8GHz HD FPV Monitor
Model Number  PVR-758
Screen Size  7 Inch
Resolution  1024X600 pixels (suport max to1920×1440)
Backlight  LED
Aspect Ratio 16:9
Contrast Ratio  700:1
Brightness  250cd/m2
Response Time  10ms
Support Video format PAL-4.43,;NTSC-3.58
Viewing Angle 75°/75°(L/R), 75°/75°(U/D)
Input Signal  Video,Audio,RF,HDMI,TF Card Insert
Output Signal Video,3.5mm Earphone Jack
Input Voltage  DC6-24V
Power Consumption  ≦8W
Working Temperature -20℃~60℃
Stroage Temperature -30℃~70℃
Install Way  "1/4"-20 Thread mounting socket
Unit Size  189(L)x 134(W)x32(H)mm
Unit Weight  450g
StandardAccessories   Sun Shade x1, Sony  F970 Battery Plate x1, Mini HDMI cable x1

Antenna x1, Instruction Manual x1
OptionalAccessories  Power Adaptor, Li-Ion Battery , Cano LP-E6 Battery Plate, Panasonic D28S battey Plate
Packing Details  10PCS/CTN , N.W./G.W.:14/16KGS

Carton Size:50x44.5x27.4CM



Wireless Built-in Receiver 8 Standard Channels:



Channel SN.
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Receiver (MHZ)
5705 5685 5665
5645
5885
5905 5925 5945
Pin Electronic Level  CH1
0 1 0 1 0 1 0 1
Pin Electronic Level  CH12
0 0 1 1 0 0 1 1
Pin Electronic Level  CH3
0 0 0 0 1 1 1 1
