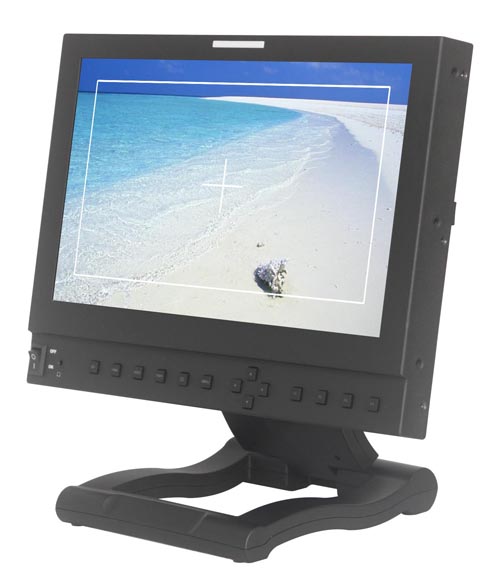

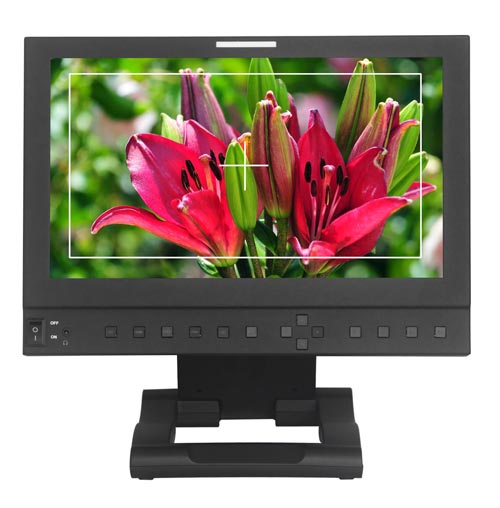

3G-SDI Professional 13.3 Inch Broadcasting HD Monitor
Classification: 13.3 Inch Published: 2013-08-30 22:47:43
  • Price : Negotiable
  • Order


3G-SDI Professional 13.3 Inch  Broadcasting HD Monitor

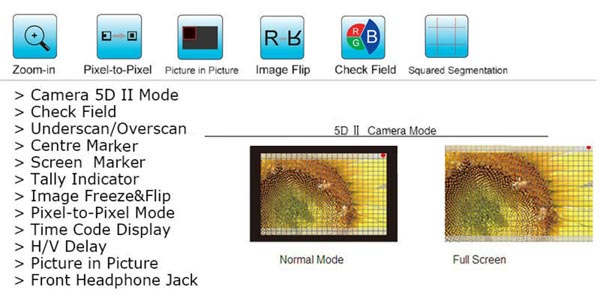

Advanced Features :



  • 5D Ⅱ Camera Mode(DSLR Ratio Adjustment)
  • H/V Delay

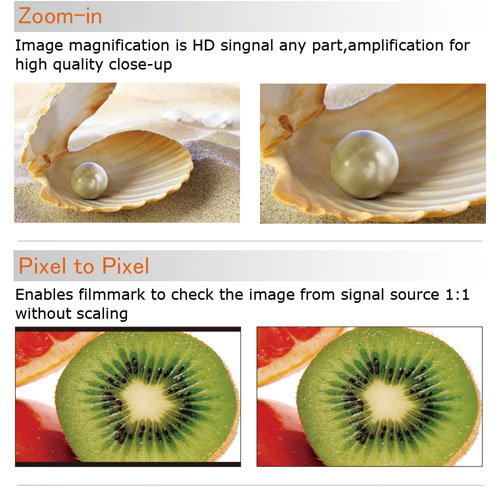

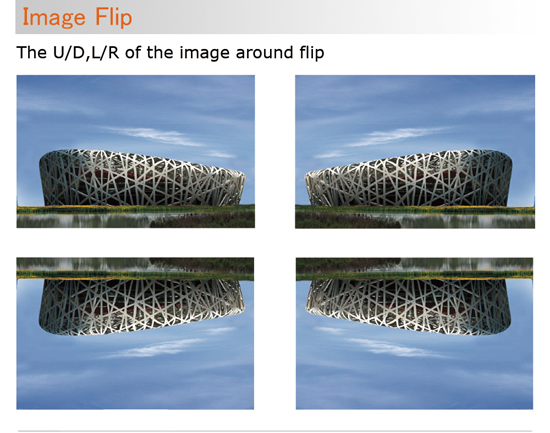

  • Image Freeze/ Multiplication(Zoom),Image Flip

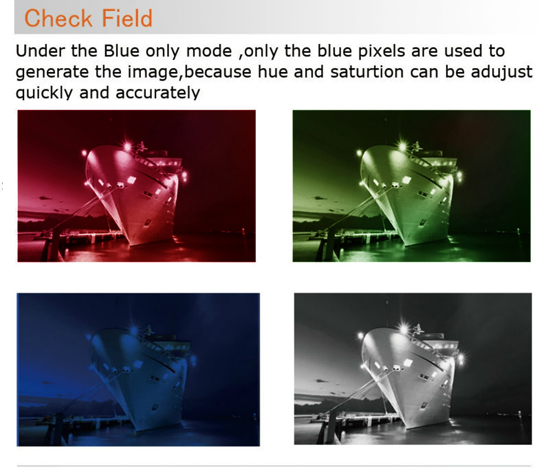

  • Check Field (Red,Green,Blue,Mono,)
  • Underscan/Overscan
  • Pixel-to-Pixel Mode
  • Tally Indicator(Red/ Green)
  • Front Headphone Jack
  • Center Marker/Screen Marker(80%, 85%, 90%, 93%, 96%)

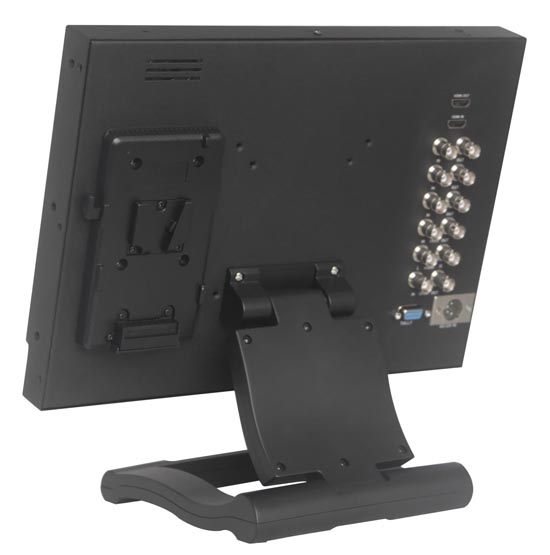

  • Variety of Optional User-Replaceable Battery Adapters available:  V-Mount battery plate,Panasonic Anton Bauer battery plate



Specifications :


Model Number

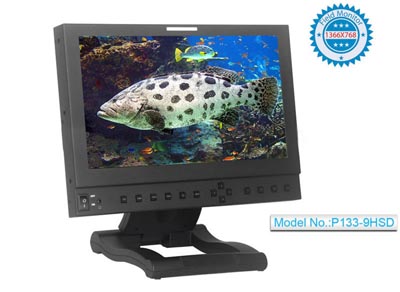

P133-9HSD

Screen Size

13.3 Inch

Resolution

1366X768

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

500:1

Brightness

220cd/m2

Viewing Angle

45°/45°(L/R) ,20°/45°(U/D)

Input Signals

3G/HD/SD-SDI,HDMI,Component,Composite

Output Signals

3G/HD/SD-SDI,HDMI,Component,Composite

Power Consumption

≦10W

Input Voltage

DC 7-18V (4-Pin XLR)

Working Temperature

 0~50

Storage Temperature

-20~60

Unit Size

355Lx239Wx30H(mm)


Unit Weight

6KG

Accessories

Sun Shade x1, Mini HDMI cable x1, Hot Shoe x1,

SONY F970 Battery Plate

Packing Details

 2PCS /CTN



Carton Size:



N.W./G.W.:
